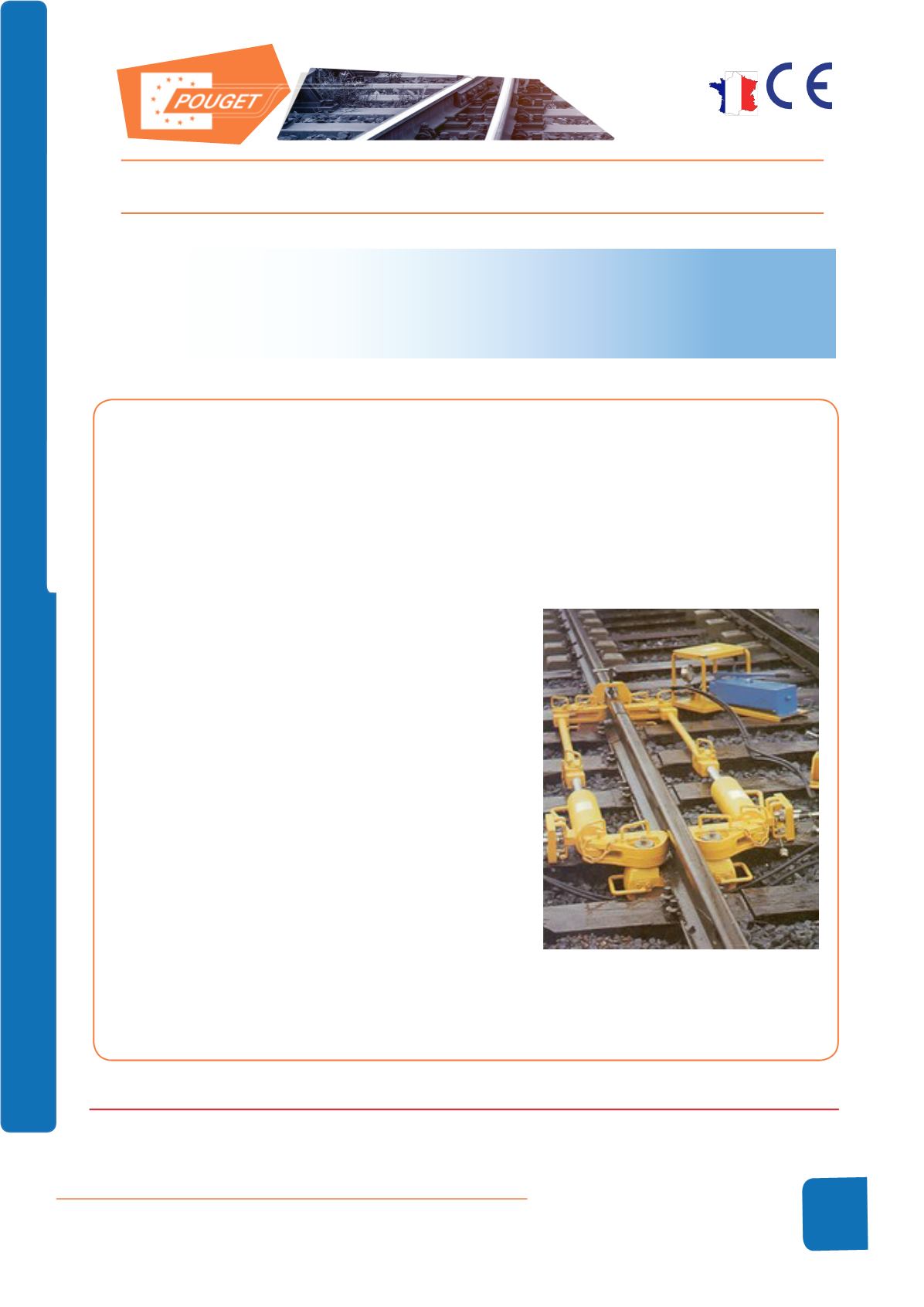

HYDRAULIC RAIL TIGHTENERS - TR-70
.
USE : Adjusting the gap between 2 Rails before welding
Tighteners to free continuous Lengths of Rails.
ADVANTAGES : Very Tough Equipment designed to ensure that trains can move freely, without
engaging the Track Gauge.
ƒ ƒ Tensile force = 700 KN
ƒ ƒ Longitudinal Stroke of Hydraulic Jacks = 350 mm
ƒ ƒ Operating Pressure = 600 Bars
ƒ ƒ Automatically operated Jaws suitable for all Rail Section up to 60 Kg/m.
ƒ ƒ Tie Rods of various lengths (to specify) ranging from 0.50 m to 2 m. (Standard Length = 1.80 m)
ƒ ƒ Overal Width : 750 mm (excl. tie rods)
ƒ ƒ Total Weight approx. = 270 Kg
ƒ ƒ Operates using a Manual Pump or Hydraulic Unit.
1 Standard Rail Tightener ref. TR-70 is equipped :
ƒ ƒ 2 Tightening Sets by a Jaw
ƒ ƒ 2 Hydraulic Jacks - Force 75 tons
ƒ ƒ 2 Tighteners, Length 1.80 m
ƒ ƒ 1 Manual Hydraulic Pump
