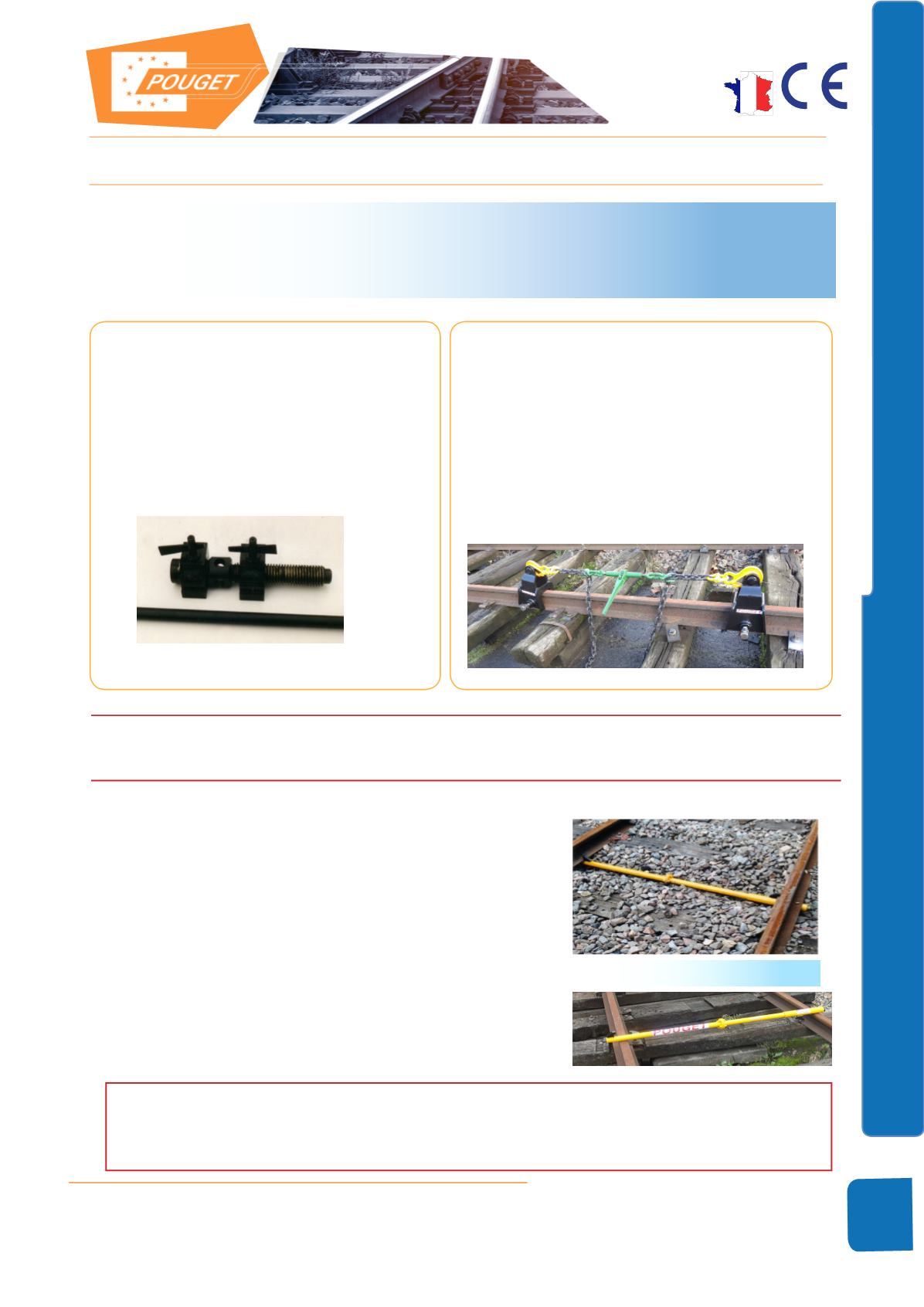

HAND TOOLS
Made in
1/3
USE : Setting the joint: clearance coupling by manual action on the Adjusting Lever.
(Use the Gauge Device- Tech Spec 5/7 - Ref. 580)
ADVANTAGES : Simple - Economical and Tough
Manual Pulling Rail Device «CHOELER» Type 40
ƒ ƒ Ø 52 mm Hardened Steel Screw
ƒ ƒ Ø 25 mm Centring Pins
ƒ ƒ 2 Locking Keys
ƒ ƒ 1 Adjusting Lever 0.9 m Length
ƒ ƒ Stroke : 350 mm
ƒ ƒ Weights : Device = 11 Kg / Lever = 3 Kg
MANUAL JACK with Chain - Type 40-C
ƒ ƒ Power 6 Tons
ƒ ƒ Stroke 6 m
ƒ ƒ Weight : Ratchet 30 Kg / 2 Jaws x 16 Kg
ƒ ƒ OPTION : Jaws for Tramway Rails.
This Device allows to pull Rails to adjust the Rail Ends Play
(It is possible to pull Spaced Rails until 4 m.)
GAUGE RETAINING BAR / DEVICE TOWIDEN OR NARROWTHE GAUGE
SAFETY : Compulsory for tracks with broken Coachscrews or Bolts
RAIL PULLING DEVICES
ƒ ƒ Body made of high-resistance steel pipping with hooks for the rail flange.
ƒ ƒ Stroke = 240 mm
ƒ ƒ Operates by tightening using a 38 mm hex Nut on Flats
ƒ ƒ Length = 1.88 m. (for standard gauge 1435 mm)
ƒ ƒ Weight = 11 Kg
ƒ ƒ Paint yellow varnish
The Bar is positioned UNDER THE TRACK.
ƒ ƒ ELECTRICALLY INSULATED DEVICE - Reference : 111
ƒ ƒ NO-ELECTRICALLY INSULATED DEVICE - Reference : 111-N
The Bar is positioned ABOVE THE TRACK.
ƒ ƒ ELECTRICALLY INSULATED DEVICE - Reference : 112
ƒ ƒ NO-ELECTRICALLY INSULATED DEVICE - Reference : 112-N
(Other Gauges on request)
OPTION : Extension Bar (adjustable in 3 positions) for Switches and Crossings (Stroke 200 mm)
ƒ ƒ Electrically insulated - Reference : R-111
ƒ ƒ No-electrically insulated - Reference : R-111-N
