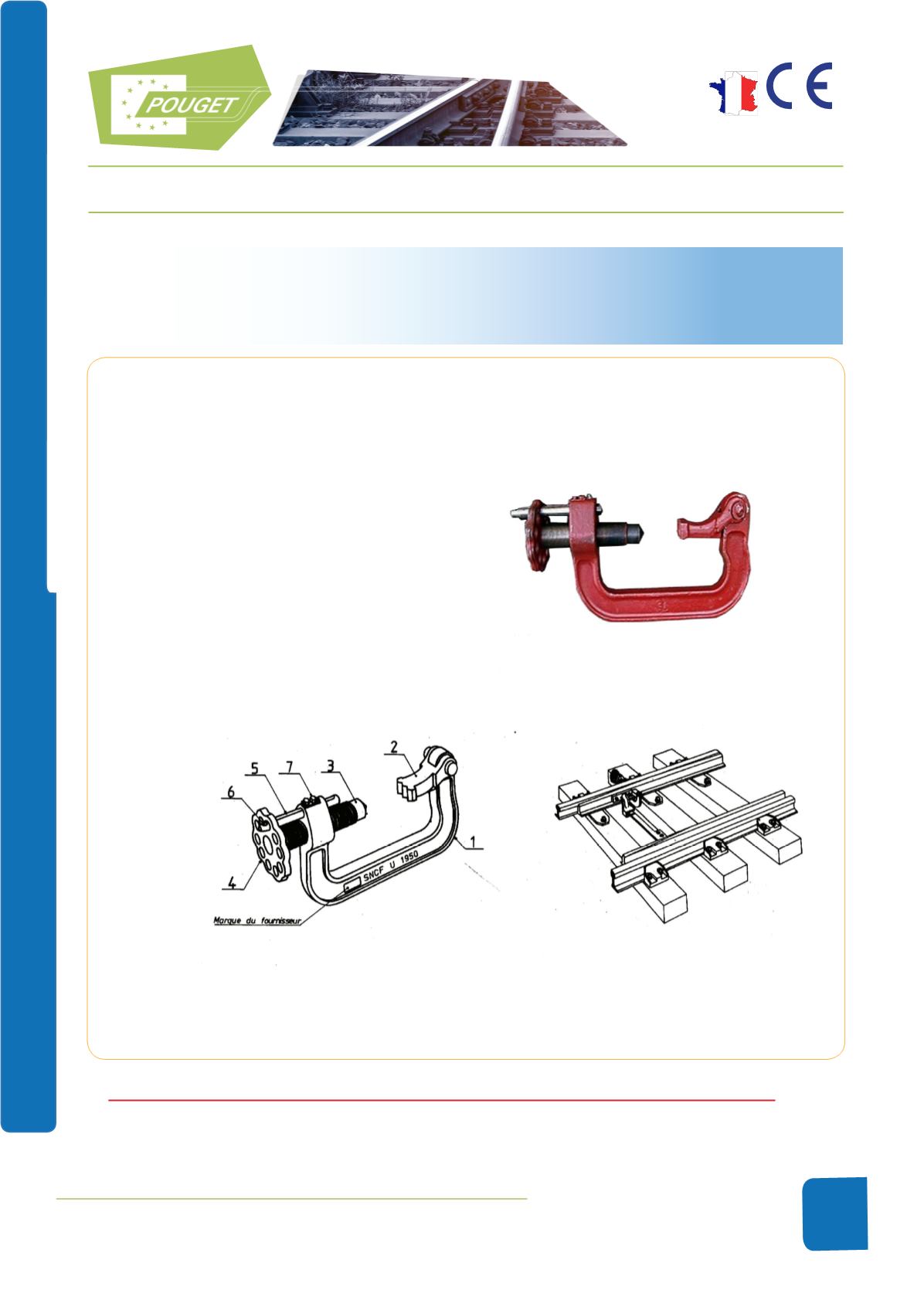

SWITCH RAIL KEY LOCK
USE : Locking Switch and Crossings
ADVANTAGES : Highly Safe Equipment in forged steel (does not engage the track gauge).
OPTION
ƒ ƒ Trapezoïdal Threaded Screw (minimum quantity = 20 p.) - Ref. 271-FT
ƒ ƒ Model French Railways « SNCF »
ƒ ƒ Screw stroke : 100 mm
ƒ ƒ 10 locking positions
ƒ ƒ The screw is made from hardened steel with a 120° pointed end (Small Thread)
ƒ ƒ Pivoting Rear Shoe
ƒ ƒ Paint : brown varnish
ƒ ƒ Overall Length : 40 x 20 x 10 cm
ƒ ƒ Weight : 5.7 Kg
ƒ ƒ Reference : 271
1 - Casing
2 - Pivoting shoe
3- Clamping Screw
4 - Clamping HandWheel
5 - Locking Rod
6 - Hole for Pad Lock
7 - Guidage screw of the rod rep. 5
Type 1950 Switch Rail Key Lock
(Claw 2 in Normal Setting Position)
Setting on turnout
(Fixed of the left tong)
