MEASUREMENTS AND CONTROL EQUIPMENTS
Made in
8/7

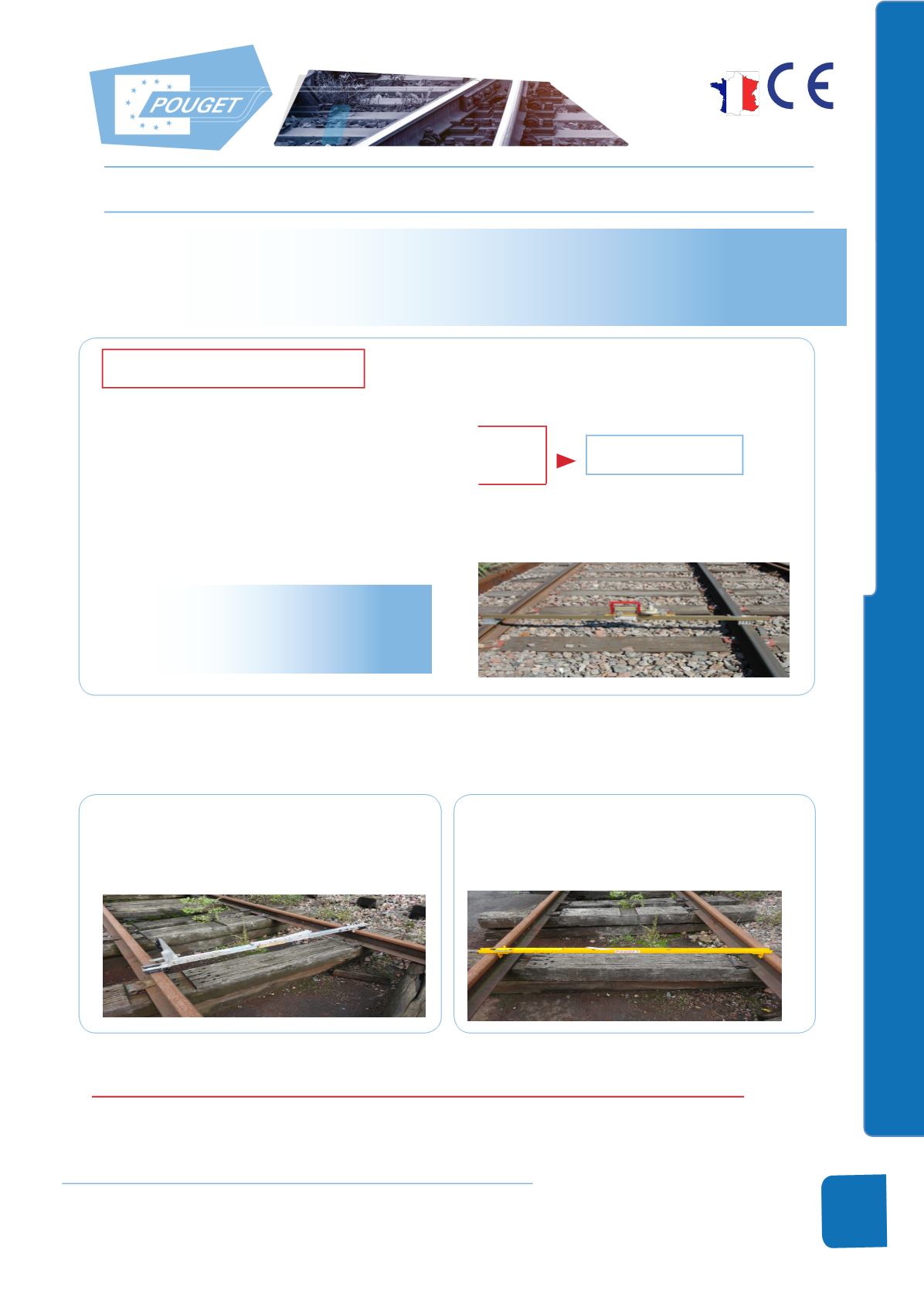

GAUGES FOR TRACK (RAIL MEASURING DEVICES)
USE : High-precision measure to check the track gauge and superelevation
(Tracks Renewal and Maintenance)
ADVANTAGES : Light (aluminium body) - integrated adjustable bubble level
STANDARD GAUGE - Ref. GW-80
This is a very accurate for the following direct readings and measurements
ƒ ƒ Track gauge reading = -10 to +40 mm.
ƒ ƒ Track superelevation reading = -40 to +200 mm
ƒ ƒ Graduation mark = 1 mm
ƒ ƒ Electrically insulated
ƒ ƒ Dimensions : 1680 x 105 x 300 mm
ƒ ƒ Net weight = 2.9 Kg for track gauge 1435 mm .
Immediate Reading
« Alongside platform » rule, Check the positioning of the track in relation to the platform.
ƒ ƒ Reference : GW-85 (See Sheet No-10/7)
OPTIONS
ƒ ƒ Device for tram tracks : add ... TR
ƒ ƒ Wooden case = 13 Kg - Dimensions : 175 x 14 x 28 cm - ref. CO
SNCF Type Rule Reference : 1NG
Body in Duraluminium
With Separated Level (Ref. 7) for Reading
of the Track Slope - Weight 3 Kg
Single standard gauge measure - Steel body
Reference : 11NG
With Separated Level (Ref. 7) for Reading of
the Track Slope - Weight 2 Kg
We can supply theses Track Gauges Rules for
all Other Gauges (To specify)
Certificate of Calibration (on request)
