MEASUREMENTS AND CONTROL EQUIPMENTS
6-8, allée du Val du Moulin - B.P. 69 - 93240 STAINS - FRANCE
Tél. : 33.1.48.26.62.12 - Fax : 33.1.48.22.37.15 - E-mail :
Web : www.
Tese Specifications are given for your information onlyand may be technically modified and improved.
Made in
9/7

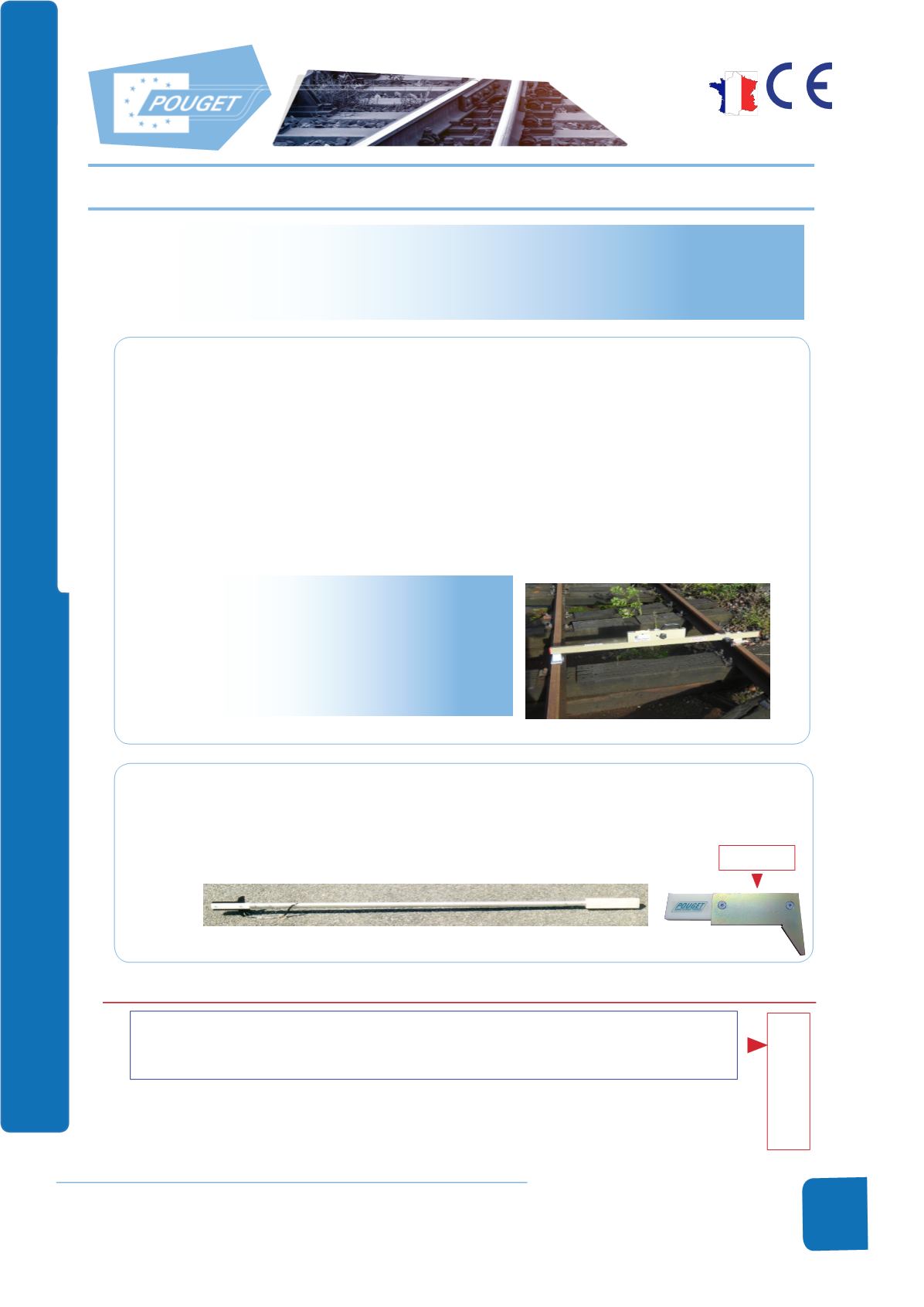

GAUGES FOR SWITCHES AND CROSSINGS (TURNOUTS)
USE : High-Precision Gauge to measure the Switches and Crossings
(New Equipment or Maintenance Works)
ADVANTAGES : Direct reading : for all measurements - Integrated adjustable bubble level.
This is a very accurate Rule for the following direct readings and measurements
ƒ ƒ Track gauge = -10 to +40 mm.
ƒ ƒ Superelevation of the track = -40 to +200 mm
ƒ ƒ Track guide = -10 à +10 mm
ƒ ƒ Between Guard rails (1332 to 1365 mm for standard gauge)
ƒ ƒ Width of switch opening (31 to 60 mm) size of switch tongue protection
ƒ ƒ Accuacy of reading : 1 mm
ƒ ƒ Sizes (for standard gauge) : 1710 x 105 x 250 mm
ƒ ƒ Weight = 3.6 Kg (for 1435 mn track)
ƒ ƒ Reference : SW-9182
OPTIONS
ƒ ƒ Accessory for checking of Point Protection - Ref. K-120
ƒ ƒ Wooden case (175 x 14 x 28 cm) - Weight = 13 Kg - Ref. CO
ƒ ƒ Device for tram tracks (add) - TR
ƒ ƒ At 60° Square Rule for the Control of the Slope Running - Ref. K-125
Rule for checking 1/2 Point and Crossings - Ref. 582 , With 3 mm Checking Punch «Duralumin»
Body Nylon insulator on base, Length : 1.65 m - Weight 1.7 Kg
Length 1.65 m
(for Standard Track 1435 mm.)
We can supply theses Track Gauges Rules
for all Other Gauges (To specify)
Certificate of Calibration (on request)
See Options below
SW-9182
Rule
Ref. K-125
