MEASUREMENTS AND CONTROL EQUIPMENTS
Made in
10/7

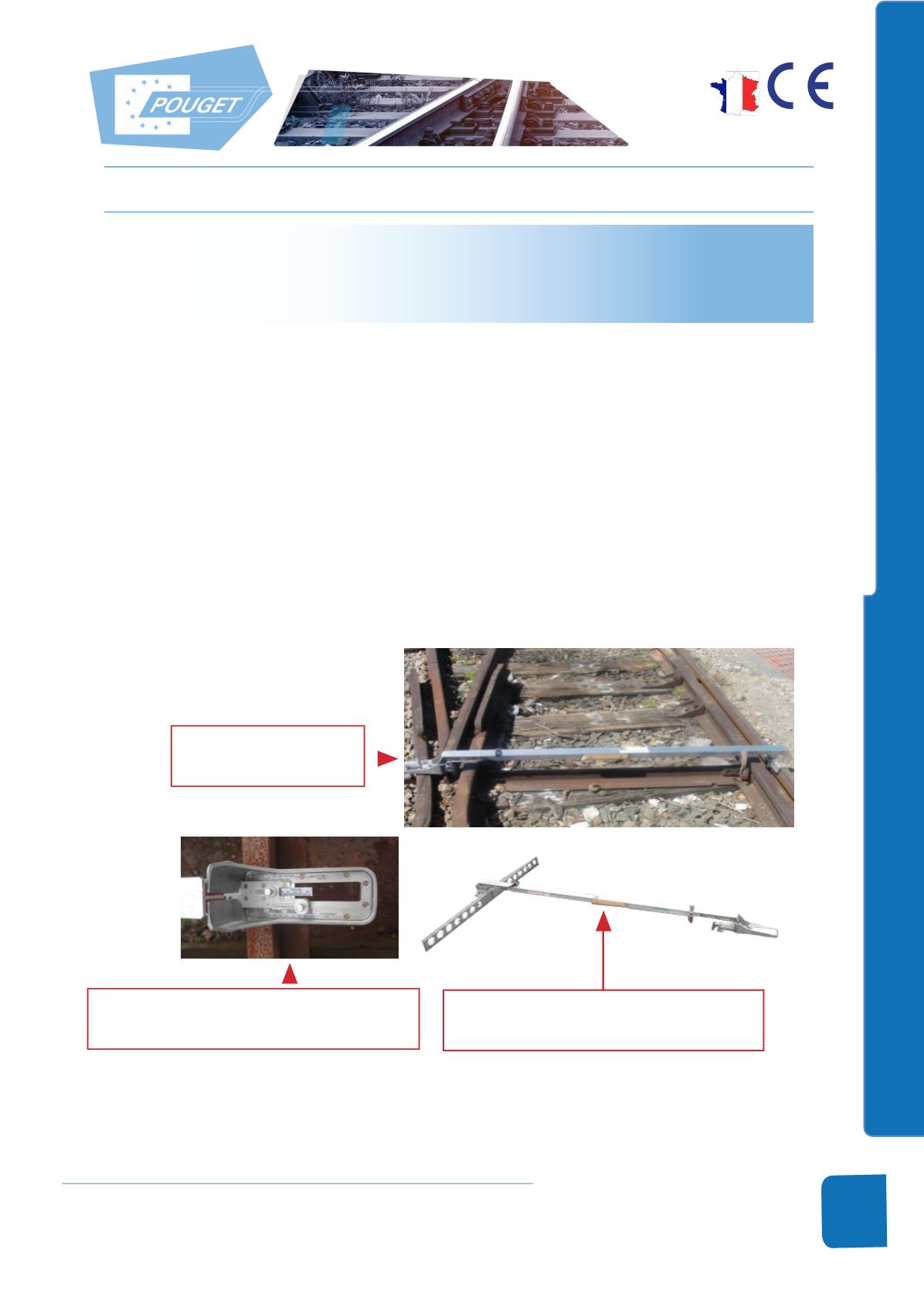

«10-R» SNCF GAUGE FOR SWITCHES AND CROSSINGS (TURNOUT)
The «10-R SNCF» Gauge is a very accurate Tool, and allows the following Direct Readings and
Measurements :
ƒ ƒ Track Gauge = -10 to +40 mm.
ƒ ƒ Superelevation of the Track = -40 to +200 mm
ƒ ƒ Track Guide = -10 to +10 mm
ƒ ƒ Between Guard Rails = 1332 to 1365 mm (For Standard Gauge)
ƒ ƒ Width of Switches Opening : 31 to 60 mm
ƒ ƒ Size of Protection of Point into the Double Slips.
ƒ ƒ Dimensions (for Standard Gauge) : 161 x 9 x 13 cm
ƒ ƒ Weight (for Standard Gauge) = 7.6 Kg
ƒ ƒ Reference : 10-R «SNCF»
USE : High-Precision Gauge to measure the Switches and Crossings.
(For New Equipments, and for Maintenance Works)
ADVANTAGES : Direct reading for all Measurements.
Track Gauge Control
and Superelevation
Control Track Guide between
Guard-Rails andWidth of Switch-Opening
Accessory for Checking of Protection
of Point into the Double Slips
