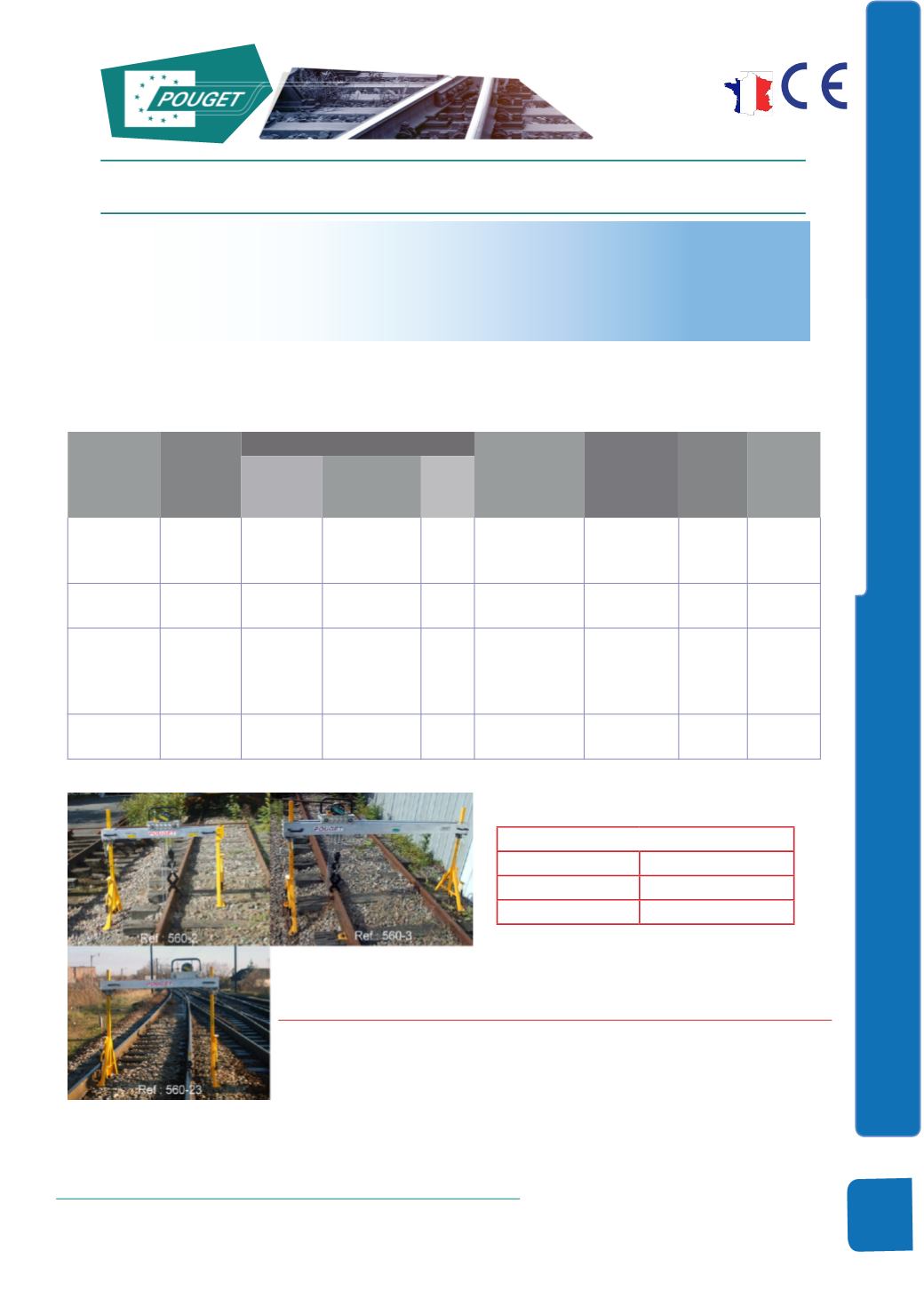

LIGHTWEIGHT GANTRY CRANES FOR RENEWAL OF RAILS
USE : Renewal of Rails and Switches and Crossings, (lifting and lining of the Track).
Loading and unloading Switches and Crossings on Track Motor Car.
ADVANTAGES : Highly Safety Equipments - Easy to dismantle and transport.
ƒ ƒ Horizontal Beams made from reinforced aluminium alloy.
ƒ ƒ Steel Legs with Wheels for carrying on rails and Handles.
Length
Horizontal
Bearm
(m)
Lifting
Capacity
(Kg)
Quantities
Hoist
control
Weight
gantry
crane alone
(Kg)
Ref. Size
Fixed Leg AdjustableLeg Hoist
1.2 1000 1 1 1 Crank Handle 49 559/1 Small
1.8 1000
1 1
2
1
1
Crank Handle
Crank Handle
75
86
560/2
560/23 Medium
3
1600
2000
1600
2000
2
2
2
2
1
2
1
2
Crank Handle
Crank Handle
with Chain
with Chain
120
560/3
560/31
560/32
560/33
Large
3.5 3200 2 2 with Chain 130 560/34 Super-
Large
SNCF AGREEMENTS
Agreed Models Nos. Agreements
560/2 and 560/23 DPI - 14205
560/3 DPI - 14204
OPTIONS
ƒ ƒ The Ref. 560/34 with Pivoting Transport Wheels Device allowing to circulate
on Auxiliary Lateral Rails : (Track Center’s = 3.30 m)
ƒ ƒ Rail Tong with Rollers for moving the Rail (see Tech. Spec. No. 43/3 and 44/3)
ƒ ƒ Trestle Gantry Crane (see Tech. Spec. 24/3, 43/3 and 44/3)
